Moncha Display technical specification

  • Main

    • Colour output - 4 x 8 bit
    • Axis - 2 x 16 bit
    • Maximal scan rate - 40000 pps
    • Power - 12 V or 24 V
    • Display with settings - YES
    • Number of boards - 2
    • Safety key - YES

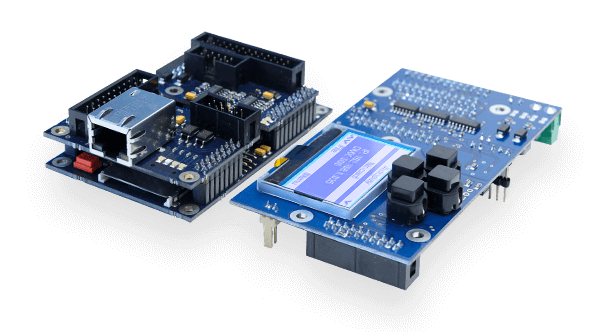

  • display tech specs 1

  • Dimension and weight

    Display board

    • Width: 110 mm
    • Height: 15.5 mm
    • Depth: 62 mm
    • Weight - 67 g

    Second board

    • Width: 82 mm
    • Height: 26 mm
    • Depth: 55 mm
    • Weight - 67 g

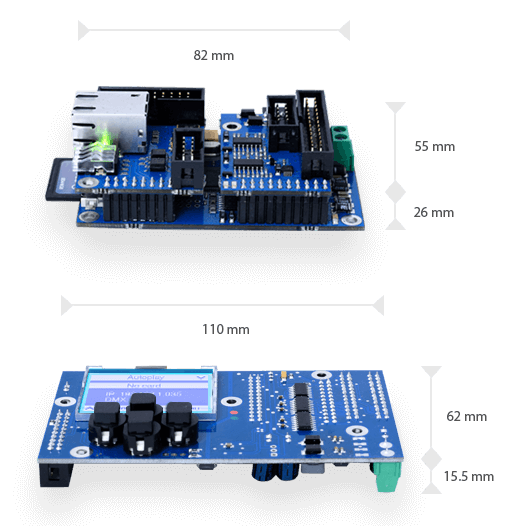

  • display tech specs 2

  • Connectors / Outputs

    • DMX 512 - YES
    • External ILDA input and invert X/Y control - YES
    • ArtNET Node (ArtNET to DMX converter) - YES
    • Ethernet - YES
    • Remote setup of IP and DMX address over Ethernet - YES
    • SD-card - YES

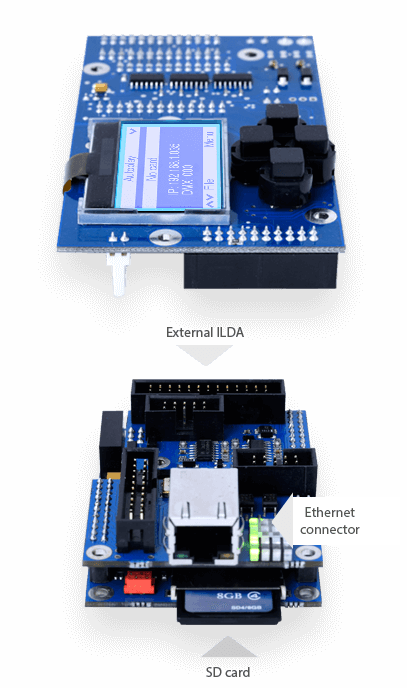

  • display tech specs 3
